Fox Thermal Optics

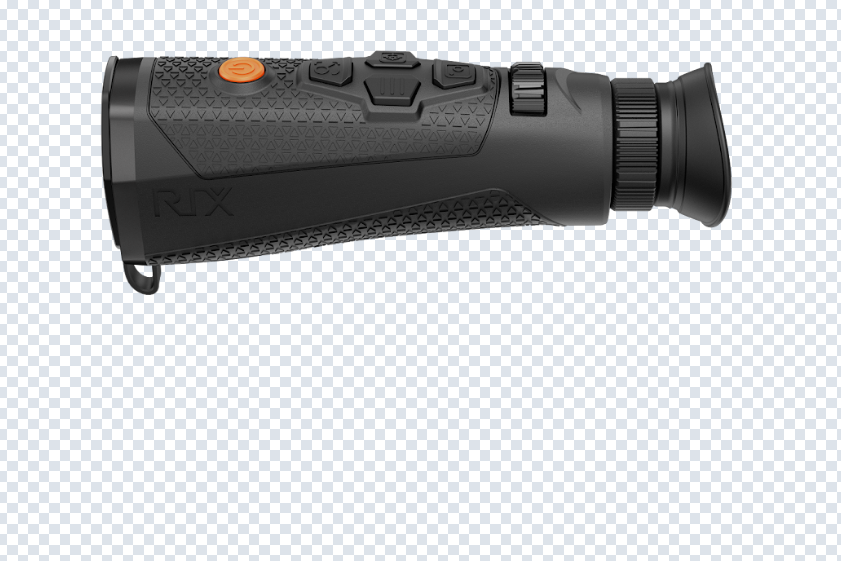

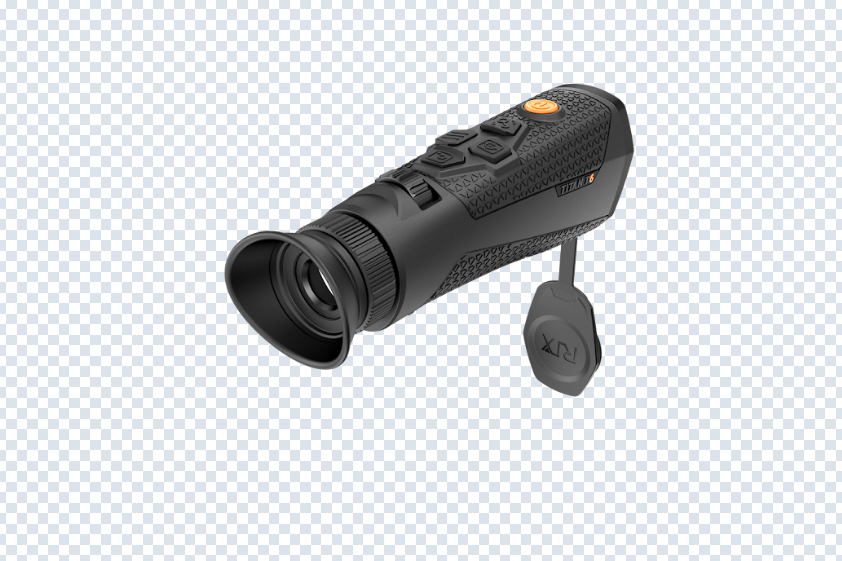

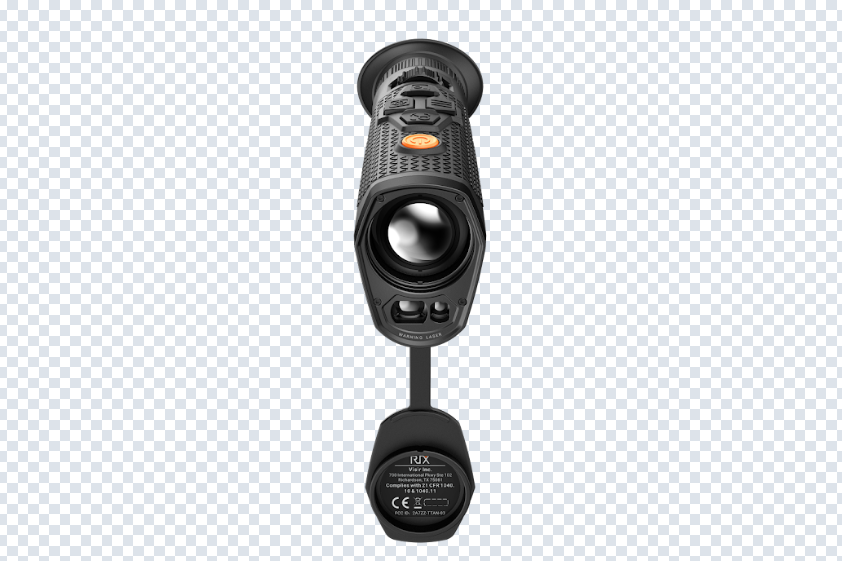

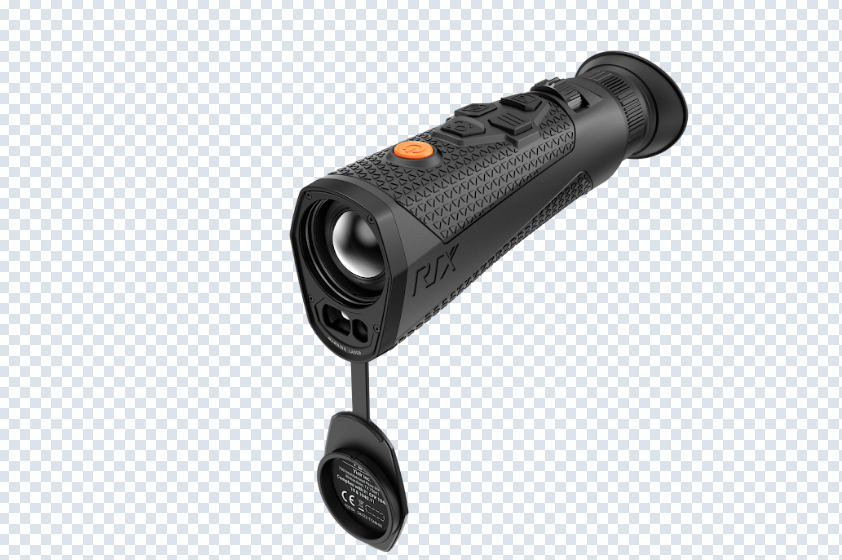

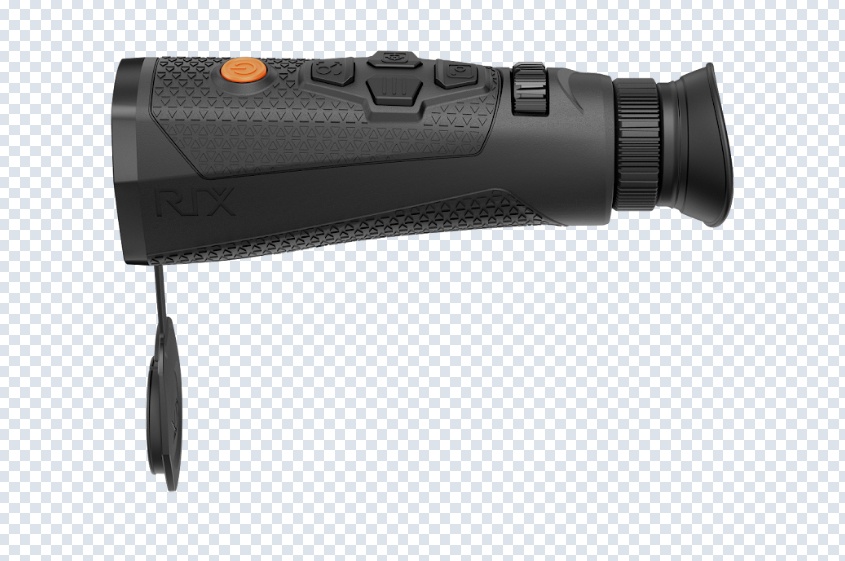

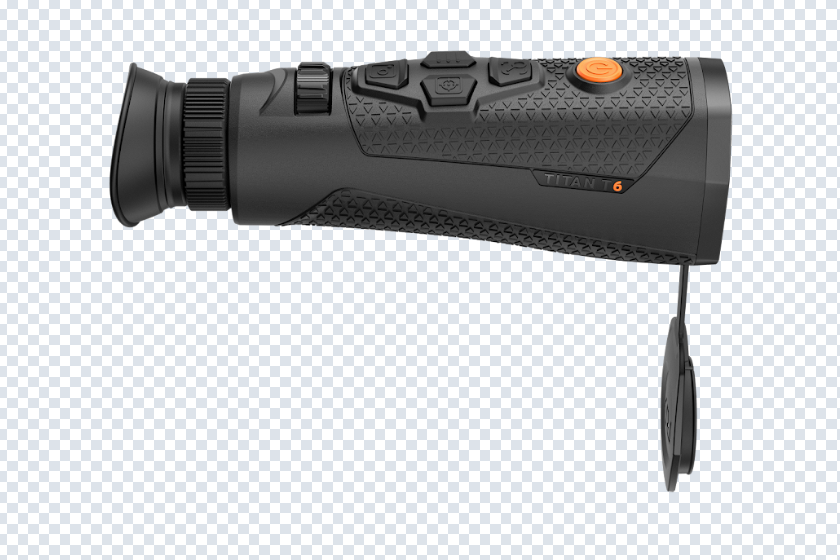

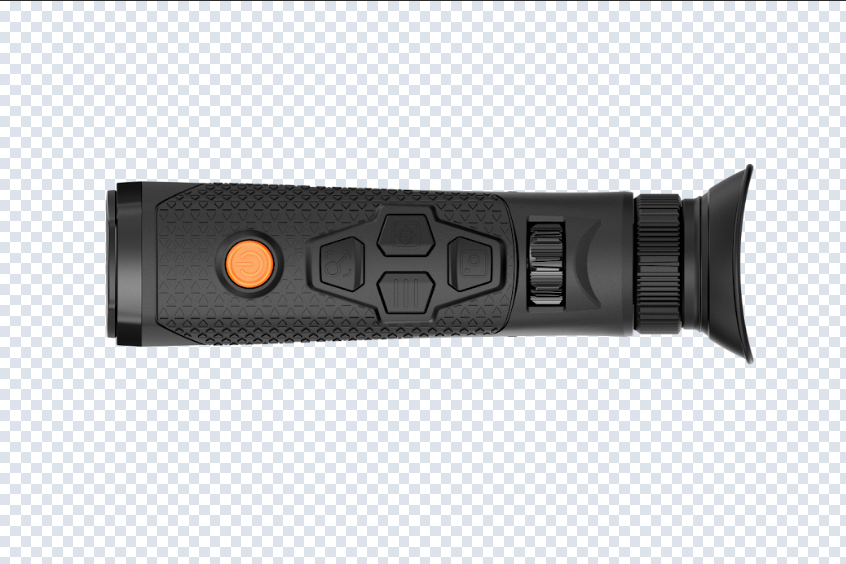

TITAN T6 Thermal Imaging Monoculars

TITAN T6 Thermal Imaging Monoculars

$2,399.00 USD
$2,599.00 USD $2,399.00 USD
Sale Sold out
Sensor Specifications
Type VOx Uncooled

Resolution, pixels 640×480

Pixel Pitch, µm 12

NETD, mK <20

Frame Rate, Hz 50

Optical Specifications
Objective Lens, mm 35

Optical Zoom, x 2.2

Field of View (H), degrees / yd @ 100 yd 12.5°/24.0yd

Digital Zoom, x 1 to 4

Eye Relief, mm 23

Diopter Adjustment, D -5 to +5

Detection Range, m/yd 1818m/1988yd

Display Specifications
Type OLED

Resolution, pixels 1920x1080

Size, inch 0.49

Laser Rangefinding
Max. Measuring range, m/yd 1200m/1312yd, Measurement Accuracy, m/yd ±1m/±1.1yd
Laser Wavelength 905nm, Laser Safety Class 1

Wi-Fi
Wireless Protocol Wi-Fi

Frequency, GHz 2.4GHz

Video Recorder
Video / Photo Resolution, pixels 1536×1080

Video / Photo Format .mp4/.jpg

Built-in Memory, GB 32

Physical Specifications
Degree of Protection, IP code IP67

Operating Temperature Range, °F -4 to +122

Dimensions, inch 8.0×2.0×2.9

Weight, lb 0.95

Connections and Compatibilities
Battery Type 18650

Operating Time on Battery Pack (at t=72°F), h 5

External Power Supply
5V (Type-C USB)
