Fox Thermal Optics

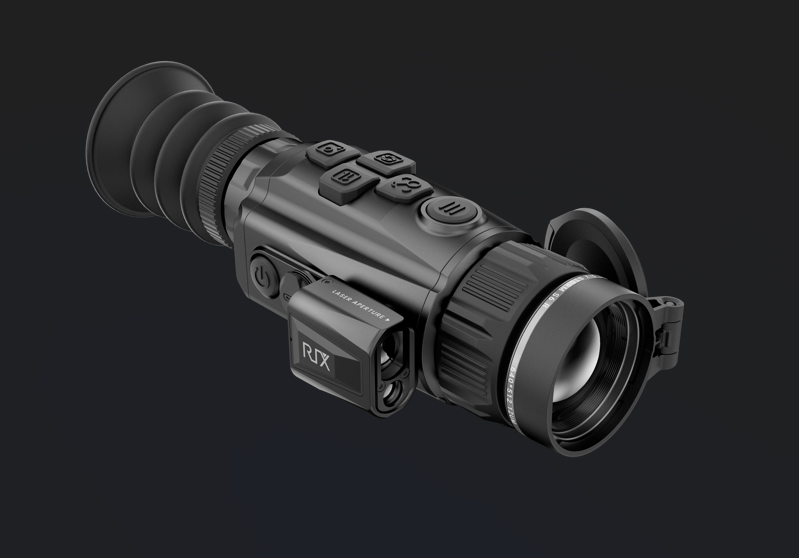

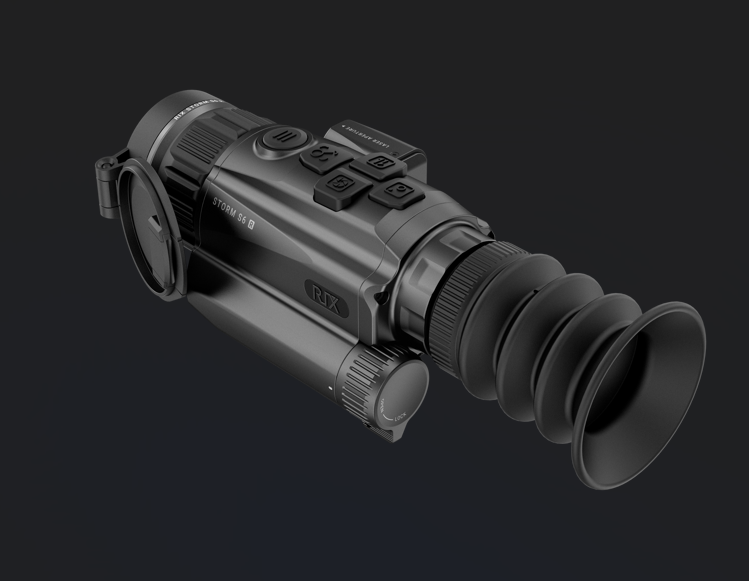

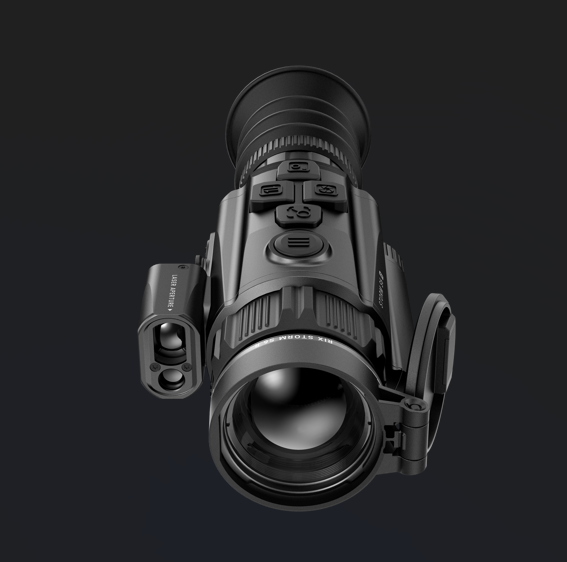

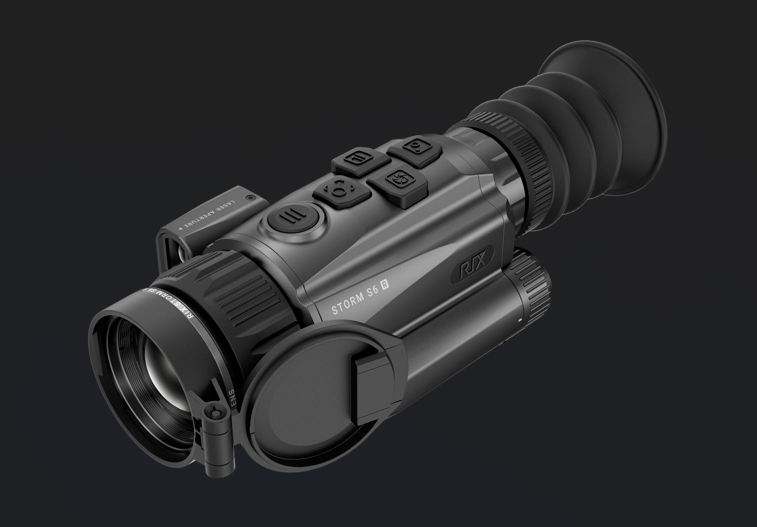

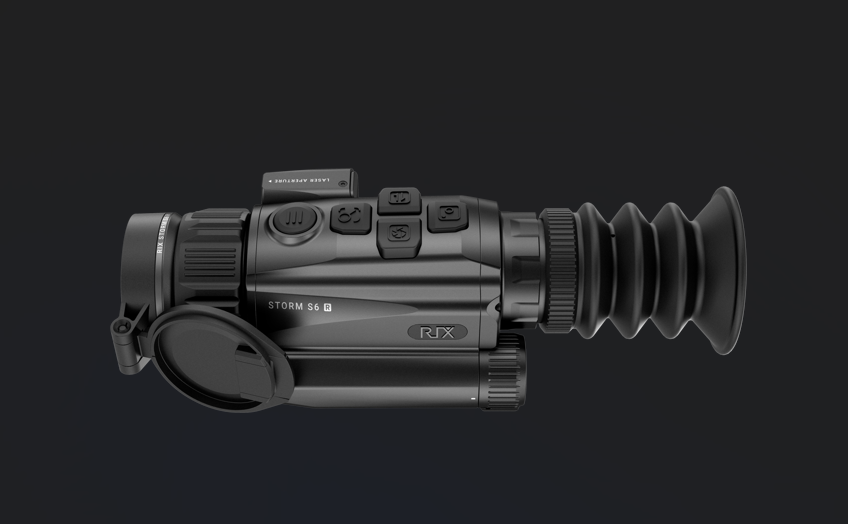

STORM S6R Thermal Imaging Rifle Scope
STORM S6R Thermal Imaging Rifle Scope
Regular price
$2,999.00 USD
Regular price
$3,199.00 USD
Sale price
$2,999.00 USD
Unit price
/
per
Couldn't load pickup availability
Sensor Specifications
Type, VOx Uncooled, Resolution, pixels 640×512, Pixel Pitch, µm 12 NETD, mK <20, Frame Rate, Hz 50,
Optical Specifications
Objective Lens 35 mm
Optical Zoom 2x, Field of View, degrees / yd @ 100 yd, 12.5°/21.9yd, Digital Zoom, x 1 to 4, Eye Relief, mm 48, Diopter Adjustment, D -5 to +5
Detection Range, m/yd 1800/1969
Display Specifications
Type AMOLED, Resolution, pixels 1024×768, Wi-Fi, Wireless Protocol, Wi-Fi, Frequency, GHz 2.4GHz,
Video Recorder
Video / Photo Resolution, pixels 1024×768, Video / Photo Format .mp4 / .jpg, Built-in-Memory, GB 32
Physical Specifications
Degree of Protection, IP code IP67, Operating Temperature Range, °F -4 to +122, Weight, lb 1
Dimensions, inch 5.3×2.7×2.2
Connections and Compatibilities, Battery Type 18650, Operating Time on Battery Pack (at t=72°F), h 4, External Power Supply, V, 5V (Type C USB)
Max Recoil Power on Rifled Weapon (Eo), g/Joules
1000g/6000Joules
Compatible Mounts
Picatinny mount
Laser Range finding
Measurement Range, m/yd 1200/1312
