Fox Thermal Optics

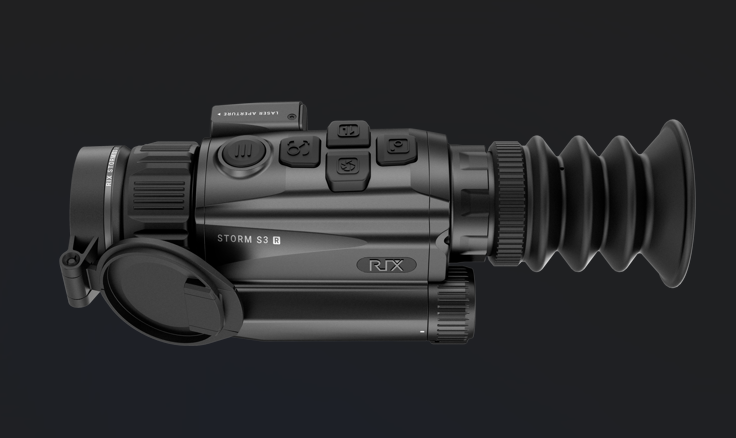

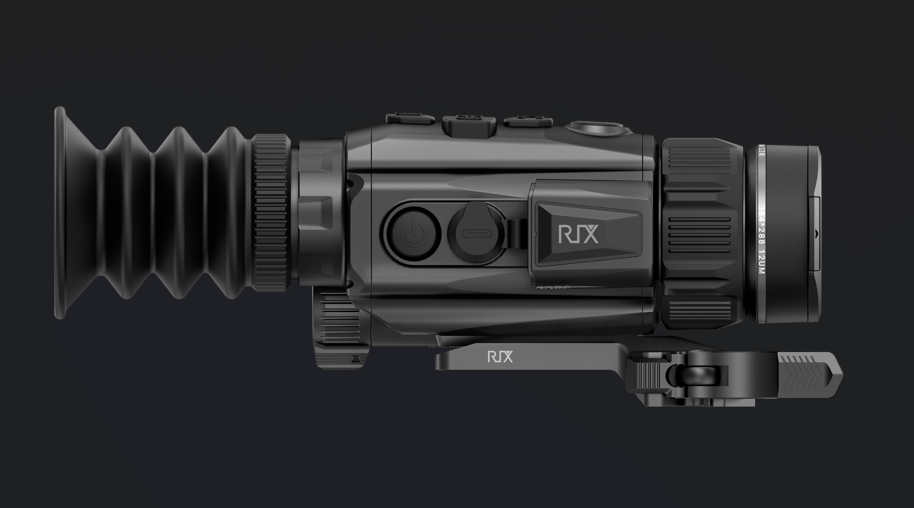

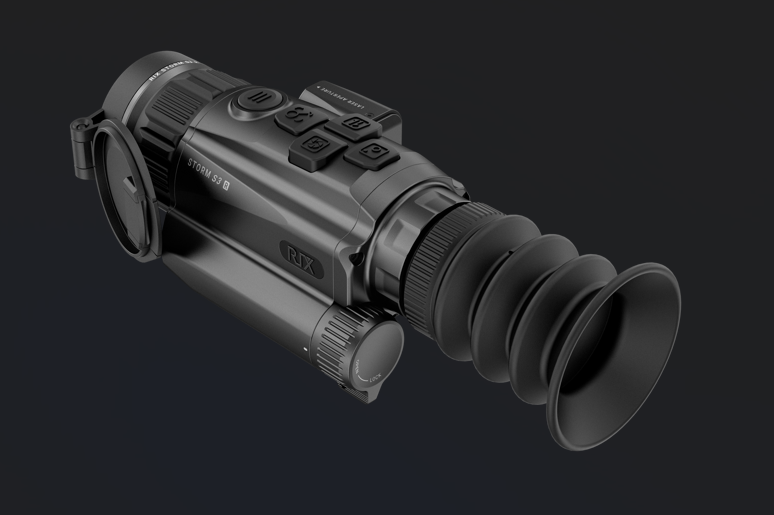

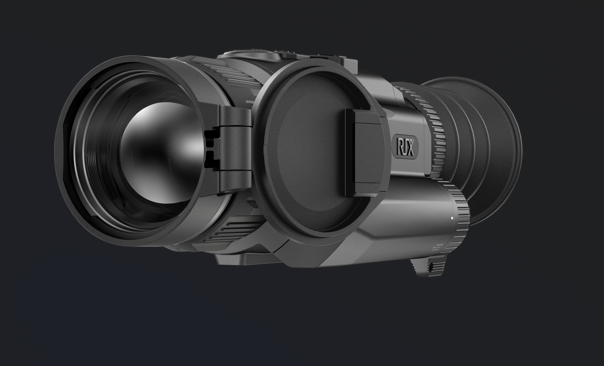

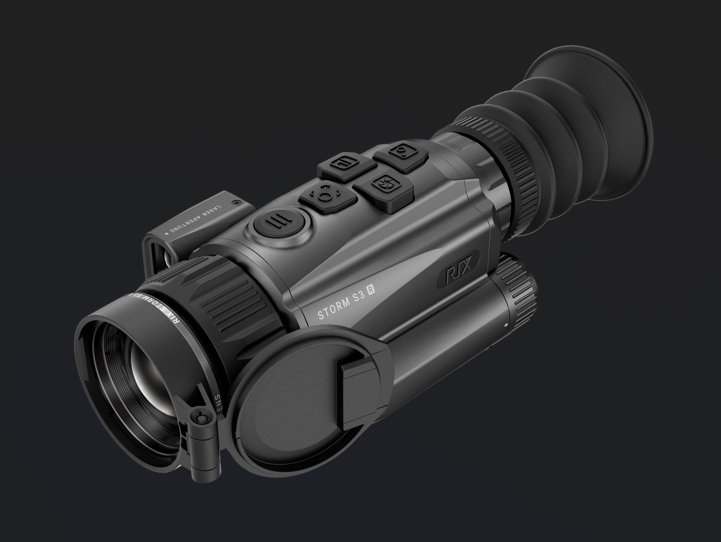

STORM S3R Thermal Imaging Rifle Scope
STORM S3R Thermal Imaging Rifle Scope
Regular price
$1,999.00 USD
Regular price
$2,199.00 USD
Sale price
$1,999.00 USD
Unit price
/
per
Couldn't load pickup availability
Sensor Specifications
Type VOx Uncooled
Resolution, pixels 384×288
Pixel Pitch, µm 12, NETD, mK <25, Frame Rate, Hz 50
Optical Specifications
Objective Lens, mm 35
Optical Zoom, x 3.5
Field of View, degrees / yd @ 100 yd 7.5°/13.2yd
Digital Zoom, x 1 to 4
Eye Relief, mm 48
Diopter Adjustment, D -5 to +5
Detection Range, m/yd 1800/1969
Display Specifications
Type AMOLED
Resolution, pixels 1024×768
Wi-Fi
Wireless Protocol Wi-Fi
Frequency, GHz 2.4GHz
Video Recorder
Video / Photo Resolution, pixels 1024×768
Video / Photo Format .mp4 / .jpg
Built-in Memory, GB 32
Physical Specifications
Degree of Protection, IP code IP67
Operating Temperature Range, °F -4 to +122
Weight, lb 1
Dimensions, inch 5.3×2.7×2.2
Connections and Compatibilities
Battery Type 18650
Operating Time on Battery Pack (at t=72°F), h 4
External Power Supply, V 5V (Type C USB)
Max Recoil Power on Rifled Weapon (Eo), g/Joules 1000g/6000Joules
Compatible Mounts
Picatinny mount
Laser Range finding
Measurement Range, m/yd 1200/1312
