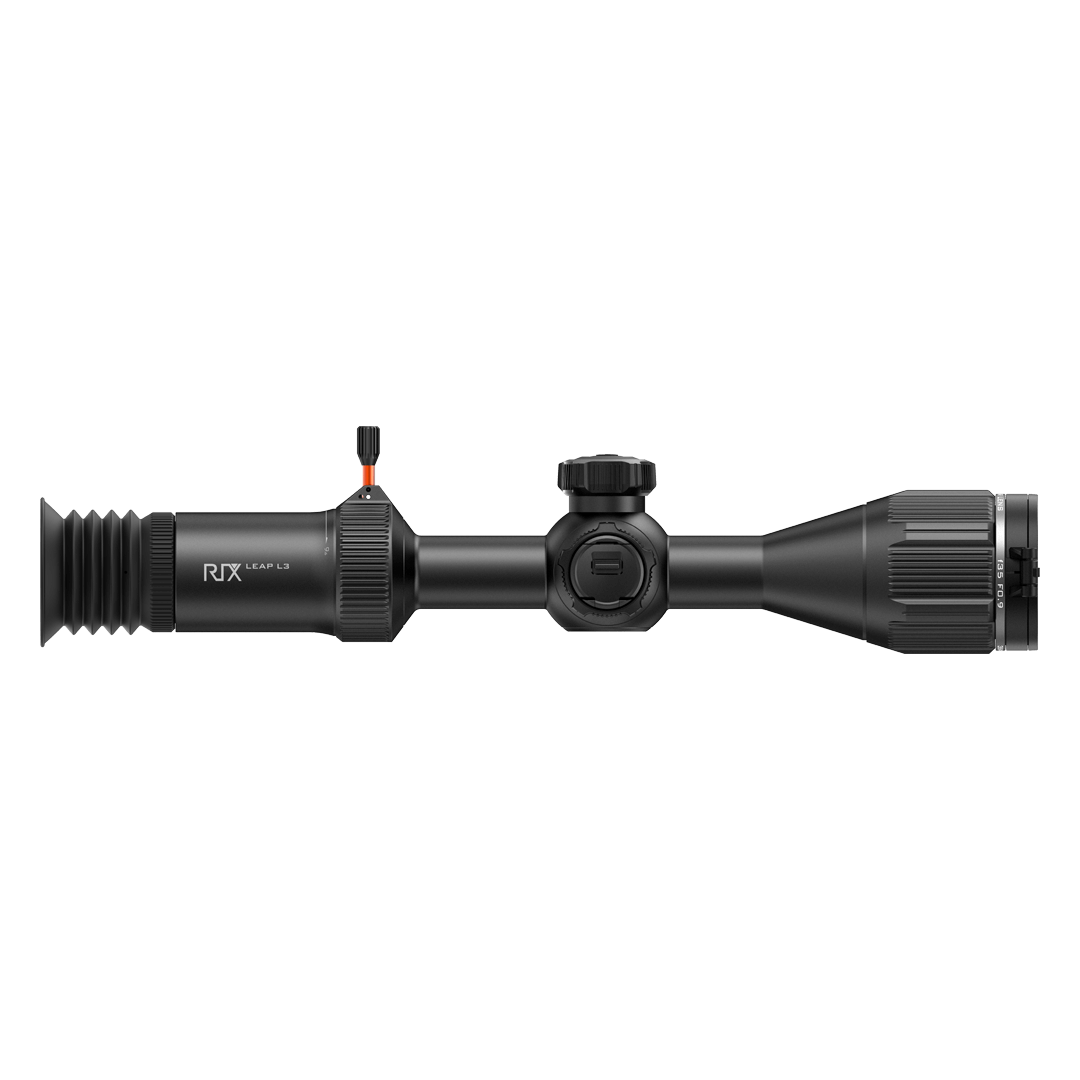

- The LEAP series L3 384 Thermal RifleScope is the world's first continuous optical zoom thermal scope, specially designed for outdoor hunting during the day and night. Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness.
- It features a 30mm standard tube diameter for easy mounting and offers a range of functionalities, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options.
- Enjoy extended usage with the replaceable 18650 battery. A single battery provides over 9 hours of continuous operation, and with just three batteries, you can experience a full day of uninterrupted usage.
- Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions. The L3 384 Thermal RifleScope is easy and intuitive to use!
| Model | L3 | |
| Sensor Specifications | Type | VOx Uncooled |
| Resolution, pixels | 384×216 | |
| Pixel pitch, μm | 12 | |
| NETD, mK | <25 | |
| Frame rate, Hz | 50 | |
| Optical Specifications | Objective Lens，mm | 35 |
| Optical zoom, x | 3.2 to 9.6 | |
| Field of View, degrees / yd @ 100 yd | 7.5°/13.2yd | |
| Digital zoom, x | 1 to 4 | |
| Eye relief, mm | 50 | |
| Diopter adjustment, D | -5 – +5 | |
| Detection Range, m/yd | 1800/1968 | |
| Display Specifications | Type | OLED |
| Resolution, pixels | 1920×1080 | |
| Wi-Fi | Wireless protocol | Wi-Fi |
| Frequency, GHz | 2.4GHz | |
| Video Recorder | Video/Photo resolution, pixels | 960×720 |
| Video/Photo format | .mp4 / .jpg | |
| Built-in memory, GB | 32 | |
| Physical Specifications | Degree of Protection, IP code | IP67 |
| Operating Temperature Range, °F | -4 to+122 | |
| Weight, lb | 2.4 | |
| Dimensions, inch | 14.2×3.5×3 | |
| Connections and Compatibilities | Battery Type | 18650 |
| Capacity, mAh | 3200 | |
| Operating Time on Battery Pack (at t=72°F), h | 7 | |
| External Power Supply, V | 5V (Type C USB) | |
| Max Recoil Power on Rifled Weapon (Eo), g/Joules | 1000g/6000Joules | |
| Compatible Mounts | 30mm rings | |
